Most modern timber framed buildings take advantage of highly effective Structural InsulatedPanels (SIPs) to insulate the structure against the elements. SIPs are just one of the insulation methods available today, but their advantages are noteworthy and contribute to the overall value of a structure in the long term. Through the use of SIPs, a timber framed structure becomes a tightly protected envelope, both framed and insulated with high performance materials. These structures provide phenomenal protection from the elements and can even help shelter occupants from allergens.
Understanding a SIP

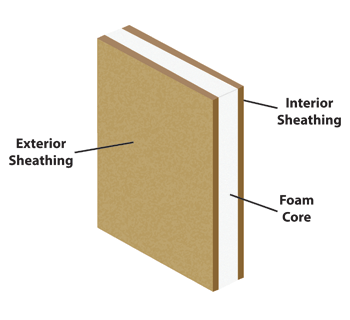

The majority of SIPs constructed today are made of a foam core that is sandwiched between
two structural boards, typically oriented strand board (OSB).
Both efficient to install and exceptional at sealing a structure, SIPs are considered one of the premier insulation methods. Due to the SIP seal, the flow of air and heat can be controlled more easily, resulting in lower energy bills and better filtration of allergens and excess moisture. In the majority of homes tested for energy efficiency, air leakage was the number one reason for heat loss. In contrast, a structure insulated with SIPs performs significantly better in the same tests. These results have led energy certification programs, such as EnergyStar, to bypass certain forms of testing for structures that insulate with SIPs, making it easier than ever to receive an energy efficient rating.
SIPs in Action

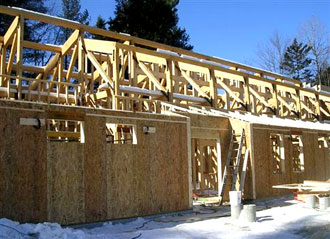

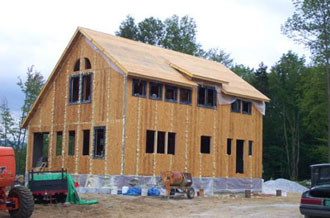

SIPs are a natural fit for a timber framed building, where the giant panels span the large spaces between timbers. In this photo gallery, see how SIPs are added to the timber frame to create a tight and efficient envelope.
